New 24 Volt DC Motor with free wheel gearbox good for Kontiki winch or kite fishing winch.
120 RPM from gearbox output shaft
17mm shaft Diameter
2.0 Amps unloaded
15 Amps max load
4 Pole Electric motor RPM 3900 ratio 32:1
200 Watts
Overall length 290 mm
Width 90mm
weight 5.5 Kg
Speed controller and tinned copper marine wire available if required at a reasonable extra cost.

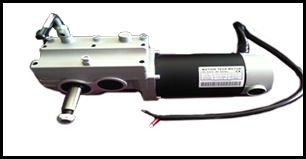

freewheel_300
Technical Drawing
Price From $320.00 Plus freight



New 12 Volt DC Motor with free wheel gearbox good for Kontiki winch or kite fishing winch.
Gearbox output shaft speeds : 90 RPM, 95 and 120 RPM
17mm shaft Diameter
2.0 Amps unloaded
15 Amps max load
4 Pole Electric motor RPM 3900 ratio 32:1
200 Watts
Overall length 290 mm
Width 90mm
weight 5.5 Kg
Speed controller and tinned copper marine wire available if required at a reasonable extra cost.

freewheel_300
Technical Drawing
NOW IN STOCK



New 24 Volt DC Motor Dual Shaft with free wheel gearbox
144 RPM from gearbox output shaft
19 mm shaft Diameter
2.0 Amps unloaded
15 Amps max load
4 Pole Electric motor RPM 4600 ratio 32:1
320 Watts
Overall length 330 mm
Width 90mm
weight 6.1 Kg
Speed controller and tinned copper marine wire available if required at a reasonable extra cost.

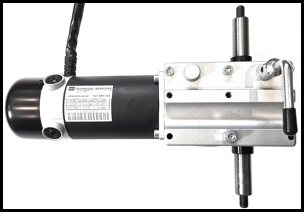

IMG_1612
Technical Drawing


New 12 Volt DC Motor Dual Shaft with free wheel gearbox

144 RPM from gearbox output shaft
19 mm shaft Diameter
2.0 Amps unloaded
15 Amps max load
4 Pole Electric motor RPM 4600 ratio 32:1
250 Watts
Overall length 330 mm
Width 90mm
weight 6.1 Kg
Speed controller and tinned copper marine wire available if required at a reasonable extra cost.


IMG_1612
Technical Drawing



LARGE 24 Volt DC Motor Single Shaft with free wheel gearbox

100 RPM from gearbox output shaft
19 mm shaft Diameter
7.0 Amps unloaded
32 Amps max load 700W
4 Pole Electric motor RPM 3200 ratio 32:1
Available in
700 Watts 32:1 Gearbox and 1000W 48:1 Gearbox
Overall length 375.6 mm
Width 110mm
weight 9.7 Kg

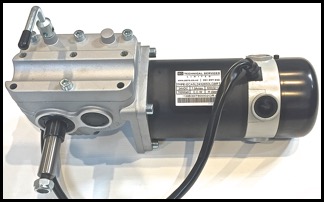

IMG_2190
Technical Drawing
