Worm Drive Motor & Gearbox 12V
12 Volt worm gear drive motor and gearbox
Output Speed 150 - 160 RPM at Gearbox
Also available 95 RPM at Gearbox
12v No Load Current: 1.8 Amps
On load current 9 - 12 AmpsWorking Voltage: 12V
Rated Torque: 30 - 45 Nm (Newton Meters)
Gear Ratio: 25:1
Net weight: 2.3 Kgs
Power: 180W
Weight capacity 40Kg
12MM shaft hole size that complete from side to the other

worm_drive_3_300
Price $180.00 Inc Gst Plus freight
Technical Drawing

Worm Drive Motor & Gearbox 12V
Stainless Steel Output Shaft

12 Volt worm gear drive motor and gearbox
Output Speed 50 RPM at Gearbox
Can run on 24V @ output speed of 100 RPM
12v No Load Current: 0.8 Amps
On load current 9 - 12 AmpsWorking Voltage: 12V
Rated Torque: 30 - 50 Nm (Newton Meters)
Gear Ratio: 49:1
Net weight: 4.3 Kgs
Power: 200W
25mm Stainless Steel output shaft 275mm Long
Steel gears


IMG_2121
Please call for price

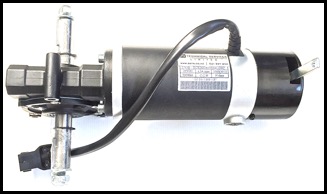

Dual Shaft Worm Drive Motor & Gearbox 12V


12 Volt Dual shaft worm drive motor with or without electric brake.
Ratio 50:1
Motor RPM 5500
Available in 160 Watts and 200 Watts
Shaft RPM 100
19mm Shaft

IMG_1649
Price From $330.00 Inc Gst Plus Freight
Technical Drawing

Single Shaft worm Drive 12V Right or Left Drive

12 Volt Single shaft worm drive motor with or without electric brake.
Ratio 50:1
Motor RPM 5300
Available in 150 watts and160 Watts
Shaft RPM 100, 68, 60.
Please ask if you need outside this range
Also have this model in 71mm Diameter motor size


IMG_1606
Price From $330.00 Inc Gst Plus Freight
Technical Drawing


12 Volt Single shaft worm drive motor with or without electric brake.
Ratio 50:1
Motor RPM 5300
200 Watts
Shaft RPM 100
17mm Shaft

IMG_1606
Price From $330.00 Inc Gst Plus Freight
